reverb::AudioProcessor Class Reference

#include <PluginProcessor.h>

Inheritance diagram for reverb::AudioProcessor:

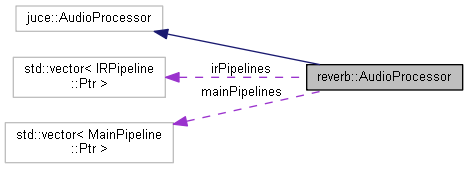

Collaboration diagram for reverb::AudioProcessor:

Public Member Functions
	AudioProcessor ()
	Constructs a reverb audio processor & initialises its inner pipelines.
void	prepareToPlay (double sampleRate, int samplesPerBlock) override
	Prepare the processor before playback starts. More...
void	releaseResources () override
	Release resource when playback stops. More...
void	processBlock (juce::AudioSampleBuffer &audio, juce::MidiBuffer &) override
	Applies reverb effect on audio buffer using parameters given through the editor. More...
void	processBlockBypassed (juce::AudioSampleBuffer &audio, juce::MidiBuffer &midi) override
juce::AudioProcessorEditor *	createEditor () override
bool	hasEditor () const override
const juce::String	getName () const override
bool	acceptsMidi () const override
bool	producesMidi () const override
bool	isMidiEffect () const override
double	getTailLengthSeconds () const override
int	getNumPrograms () override
int	getCurrentProgram () override
void	setCurrentProgram (int index) override
const juce::String	getProgramName (int index) override
void	changeProgramName (int index, const juce::String &newName) override
void	getStateInformation (juce::MemoryBlock &destData) override
void	setStateInformation (const void *data, int sizeInBytes) override

Public Attributes
juce::AudioProcessorValueTreeState	parameters
std::vector< IRPipeline::Ptr >	irPipelines
std::vector< MainPipeline::Ptr >	mainPipelines
std::mutex	updatingParams

Static Public Attributes
static constexpr const char *	PID_ACTIVE = "is_active"
static constexpr const char *	PID_IR_FILE_CHOICE = "ir_file_choice"
static constexpr const char *	PID_IR_LENGTH = "ir_length"
static constexpr const char *	PID_FILTER_PREFIX = "filter"
static constexpr const char *	PID_FILTER_FREQ_SUFFIX = "_freq"
static constexpr const char *	PID_FILTER_Q_SUFFIX = "_q"
static constexpr const char *	PID_FILTER_GAIN_SUFFIX = "_gain"
static constexpr const char *	PID_PREDELAY = "predelay"
static constexpr const char *	PID_IR_GAIN = "ir_gain"
static constexpr const char *	PID_WETRATIO = "wetratio"
static constexpr const char *	PID_AUDIO_OUT_GAIN = "audio_out_gain"

Protected Member Functions
void	initParams ()
void	updateParams (double sampleRate)
	Update parameters across all channels. More...
void	updateParamsForChannel (int channelIdx, double sampleRate)
	Update parameters for a given channel. More...
void	processChannel (int channelIdx)
	Applies reverb effect on single channel using preconfigured pipelines. More...

Protected Attributes
bool	paramsInitialised = false
int64_t	blocksProcessed = 0
AudioBlock	audioChannels

Static Protected Attributes
static constexpr int	NUM_BLOCKS_PER_UPDATE_PARAMS = 5

Detailed Description

Main reverb audio processor class. Contains all processing steps and provides a user- facing editor for parameter adjustment.

Definition at line 31 of file PluginProcessor.h.

Member Function Documentation

initParams()

void reverb::AudioProcessor::initParams ( )

protected

Low-shelf filter

Peak filter 1

Peak filter 2

High-shelf filter

IR gain

IR length

Pre-delay

Dry/wet mixer

Output gain

Meta: Bypass detection flag

Impulse responses

IR file choice is given by a string that may be one of the following: 1) name of a valid audio resource in BinaryData.h 2) full path to user-provided IR file

END: Processor is responsible for deleting parameters on destruction

Definition at line 475 of file PluginProcessor.cpp.

prepareToPlay()

void reverb::AudioProcessor::prepareToPlay ( double  sampleRate, int  samplesPerBlock  )

override

Prepare the processor before playback starts.

Called before playback starts, to let the processor prepare itself.

You can call getTotalNumInputChannels and getTotalNumOutputChannels or query the busLayout member variable to find out the number of channels your processBlock callback must process.

The samplesPerBlock value is a strong hint about the maximum number of samples that will be provided in each block. You may want to use this value to resize internal buffers. You should program defensively in case a buggy host exceeds this value. The actual block sizes that the host uses may be different each time the callback happens: completely variable block sizes can be expected from some hosts.

Parameters

sampleRate	[in] Target sample rate (constant until playback stops)
samplesPerBlock	[in] Hint about max. expected samples in upcoming block

Definition at line 131 of file PluginProcessor.cpp.

processBlock()

void reverb::AudioProcessor::processBlock ( juce::AudioSampleBuffer &  audio, juce::MidiBuffer &    )

override

Applies reverb effect on audio buffer using parameters given through the editor.

Parameters

[in]	buffer	Audio buffer containing samples to process
	midiMessages	Unused

Definition at line 212 of file PluginProcessor.cpp.

processChannel()

void reverb::AudioProcessor::processChannel ( int  channelIdx )

protected

Applies reverb effect on single channel using preconfigured pipelines.

Parameters

[in]

channelIdx

Index of channel to process

Definition at line 313 of file PluginProcessor.cpp.

releaseResources()

void reverb::AudioProcessor::releaseResources ( )

override

Release resource when playback stops.

Used when playback stops as an opportunity to free up any spare memory, etc.

Definition at line 178 of file PluginProcessor.cpp.

updateParams()

void reverb::AudioProcessor::updateParams ( double  sampleRate )

protected

Update parameters across all channels.

Update parameters in all IRPipeline and MainPipeline objects. If necessary, reprocess IR and add to MainPipeline.

MainPipeline is double-buffered to avoid interfering with processChannel(). IRPipeline is not used by any other methods, so it does not need protection.

Parameters

[in]

sampleRate

Current sample rate

Definition at line 341 of file PluginProcessor.cpp.

updateParamsForChannel()

void reverb::AudioProcessor::updateParamsForChannel ( int  channelIdx, double  sampleRate  )

protected

Update parameters for a given channel.

Update parameters in IRPipeline and Mainpipeline for given channel. If necessary, reprocess IR using new parameters and copy to MainPipeline.

MainPipeline is double-buffered to avoid interfering with processChannel(). IRPipeline is not used by any other methods, so it does not need protection.

Parameters

[in]	channelIdx	Channel parameters should be updated for
[in]	sampleRate	Current sample rate

Definition at line 380 of file PluginProcessor.cpp.

---

The documentation for this class was generated from the following files:

• Source/PluginProcessor.h
• Source/PluginProcessor.cpp
