reverb::Filter Class Reference

#include <Filter.h>

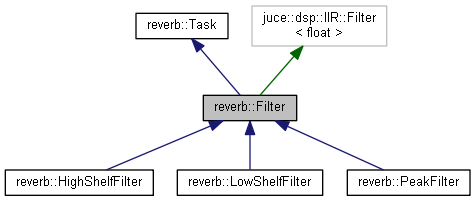

Inheritance diagram for reverb::Filter:

Collaboration diagram for reverb::Filter:

Public Types
using	Ptr = std::shared_ptr< Filter >
Public Types inherited from reverb::Task
using	Ptr = std::shared_ptr< Task >

Public Member Functions
	Filter (juce::AudioProcessor *processor, float freq=1000.0f, float q=0.71f, float gain=1.5f)
	Constructs a Filter object with optional frequency/gain/Q parameters. More...
virtual void	updateParams (const juce::AudioProcessorValueTreeState &params, const juce::String &blockId) override
	Updates parameters from processor parameter tree. More...
virtual AudioBlock	exec (AudioBlock ir) override
	Filters the audio in AudioSampleBuffer. More...
float	getAmplitude (float freq)
	Returns the filter absolute amplitude response at a given frequency. More...
float	getdBAmplitude (float freq)
	Returns the filter amplitude response in dB at a given frequency. More...
Public Member Functions inherited from reverb::Task
	Task (juce::AudioProcessor *processor)
virtual bool	needsToRun () const
	Tells caller whether block must be run for current block. More...
virtual void	updateSampleRate (double sr)
	Update sample rate for task block. More...

Static Public Member Functions
static float	todB (float m)
static float	invdB (float dB)

Protected Member Functions
void	setFrequency (float)
	Sets the filter frequency and updates the IIR filter coefficients (Meant to be used by Equalizer class) More...
void	setQ (float)
	Sets the filter Q factor and updates the IIR filter coefficients (Meant to be used by Equalizer class) More...
void	setGain (float)
	Sets the filter band gain and updates the IIR filter coefficients (Meant to be used by Equalizer class) More...
virtual void	buildFilter ()=0
Protected Member Functions inherited from reverb::Task
float	getParam (const juce::AudioProcessorValueTreeState &params, const juce::String &blockId) const
	Internal method used to get (and check) a parameter's value.

Protected Attributes
float	frequency
float	Q
float	gainFactor
Protected Attributes inherited from reverb::Task
juce::AudioProcessor *	processor
bool	mustExec = true

Friends
class	Equalizer
class	EqualizerMocked

Additional Inherited Members
Public Attributes inherited from reverb::Task
double	sampleRate

Detailed Description

The Filter class is the abstract class from which the three filter types of the plugin are derived.

Definition at line 24 of file Filter.h.

Constructor & Destructor Documentation

Filter()

reverb::Filter::Filter	(	juce::AudioProcessor *	processor,
		float	freq = 1000.0f,
		float	q = 0.71f,
		float	gain = 1.5f
	)

Constructs a Filter object with optional frequency/gain/Q parameters.

The Filter object is constructed from the processor pointer and from the optional frequency/gain/Q parameters. The frequency is the cut-off frequency of the derived LowShelfFilter/HighShelfFilter and the center frequency of the PeakFilter class.

Parameters

[in]	processor	Pointer to main processor
[in]	freq	Band frequency
[in]	gain	Band gain
[in]	q	Q factor

Definition at line 29 of file Filter.cpp.

Member Function Documentation

exec()

AudioBlock reverb::Filter::exec ( AudioBlock  ir )

overridevirtual

Filters the audio in AudioSampleBuffer.

This function filters an AudioBuffer using the IIR filter's coefficients

Parameters

[in,out]

ir

Contains the audio to be filtered, the output is placed in that same buffer

Implements reverb::Task.

Definition at line 81 of file Filter.cpp.

getAmplitude()

float reverb::Filter::getAmplitude

(

float

freq

)

Returns the filter absolute amplitude response at a given frequency.

Parameters

[in]

freq

Frequency at which the filter magnitude is evaluated

Definition at line 109 of file Filter.cpp.

getdBAmplitude()

float reverb::Filter::getdBAmplitude

(

float

freq

)

Returns the filter amplitude response in dB at a given frequency.

Parameters

[in]

freq

Frequency at which the filter magnitude is evaluated

Returns

Filter amplitude response in dB

Definition at line 142 of file Filter.cpp.

setFrequency()

void reverb::Filter::setFrequency ( float  freq )

protected

Sets the filter frequency and updates the IIR filter coefficients (Meant to be used by Equalizer class)

Parameters

[in]

freq

Frequency to be set

Definition at line 155 of file Filter.cpp.

setGain()

void reverb::Filter::setGain ( float  gain )

protected

Sets the filter band gain and updates the IIR filter coefficients (Meant to be used by Equalizer class)

Parameters

[in]

freq

Band gain to be set

Definition at line 184 of file Filter.cpp.

setQ()

void reverb::Filter::setQ ( float  q )

protected

Sets the filter Q factor and updates the IIR filter coefficients (Meant to be used by Equalizer class)

Parameters

[in]

freq

Q factor to be set

Definition at line 170 of file Filter.cpp.

updateParams()

void reverb::Filter::updateParams ( const juce::AudioProcessorValueTreeState &  params, const juce::String &  blockId  )

overridevirtual

Updates parameters from processor parameter tree.

Parameters

[in]	params	Processor parameter tree
[in]	blockId	ID of block whose paramters should be checked

Implements reverb::Task.

Definition at line 42 of file Filter.cpp.

---

The documentation for this class was generated from the following files:

• Source/Filter.h
• Source/Filter.cpp
